STEELMAX Nfix
Introducing the STEELMAX Nfix – the ultimate fastening tool for all your construction needs! Constructed with a lightweight alloy material, the Nfix is specifically designed to handle ceiling, overhead, floor, wall, and hardware applications with ease.
This innovative tool is ideal for use on hard concrete surfaces, delivering an exceptional success rate of over 90% thanks to its powerful construction. The Nfix has proven to provide excellent holding values even in normal concrete. Additionally, the piston-free design of this tool reduces spalling, making it the perfect choice for even the toughest concrete jobs.
One of the standout features of the STEELMAX Nfix is that it can operate without electricity, making it a highly versatile tool that can be used in any location, at any time. The low-profile design of the Nfix also makes it easier to fit between surrounding duct work or other installations, making it ideal for use in tight spaces.
The universal muzzle of the STEELMAX Nfix allows for fasteners from 19 to 52mm in length with a clip assembly, providing ultimate flexibility in your fastening applications. And best of all, the Nfix is powder actuated, which means no licensing is required, making it a hassle-free tool that you can start using right away.
Choose the STEELMAX Nfix for your next fastening project and experience the power, versatility, and reliability that this exceptional tool has to offer.
Nitro Actuated
"Excellent Pull-out Resistance in Hard Concrete from Grade 30 - Grade 50"
Superior-performance nail for concrete and steel
PIN TECHNICAL SPECIFICATION
- Length: 34mm
- PIN Head diameter: 7.6mm
- Shank diameter: 3.7mm
- Point type: Ballistic / Stepped shank
- Material: AISI 1060-1065 steel. Austempered to a core hardness of 53-57 Rc
- Typical tensile strength: 1,862 N/mm2
- Typical shear strength: 1,117 N/mm2
- Finish: Mechanical zinc plated to a minimum thickness of 5microns. Meets requirements of ASTM B695 – Class 5 Type 1
Suitable Base Materials:
• Structural Steel
• Masonry Joints
• Poured Concrete
• Sinter Block
Unsuitable Base Materials:
• Tiles, Wood
• Glass, Drywall
• Cast iron
• Rocks of any kind

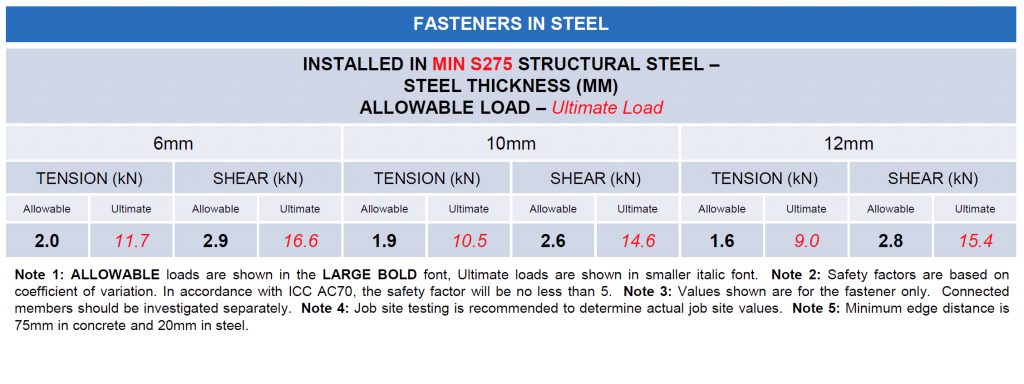

Fastening to Steel
Always maintain a minimum spacing of 1-1/2” between fastenings and 1/2” from any edge.
Fastening to Concrete
When fastening into concrete, always maintain a minimum spacing of 3” between fastenings and 3” from any free edge. Concrete thickness should be at least three times the intended penetration depth into the concrete.
Driving fasteners too close to an edge or too close to each other can cause the concrete edge to fail or fasteners to fly free.
SAFETY - WE ARE SERIOUS
1. The nails are NOT to be driven into materials such as marble, natural rock, glass, copper, brass, bonze, plastic, insulation materials, hollow brick, glazed tile, thin sheet metal (<4 mm), grey cast iron, spheroidal cast iron or gas concrete.
2. Never fasten directly to a base material easily penetrated like wood or gypsum board. These types of materials may cause the fasteners to penetrate through to the other side making it dangerous for other people in the work area.
