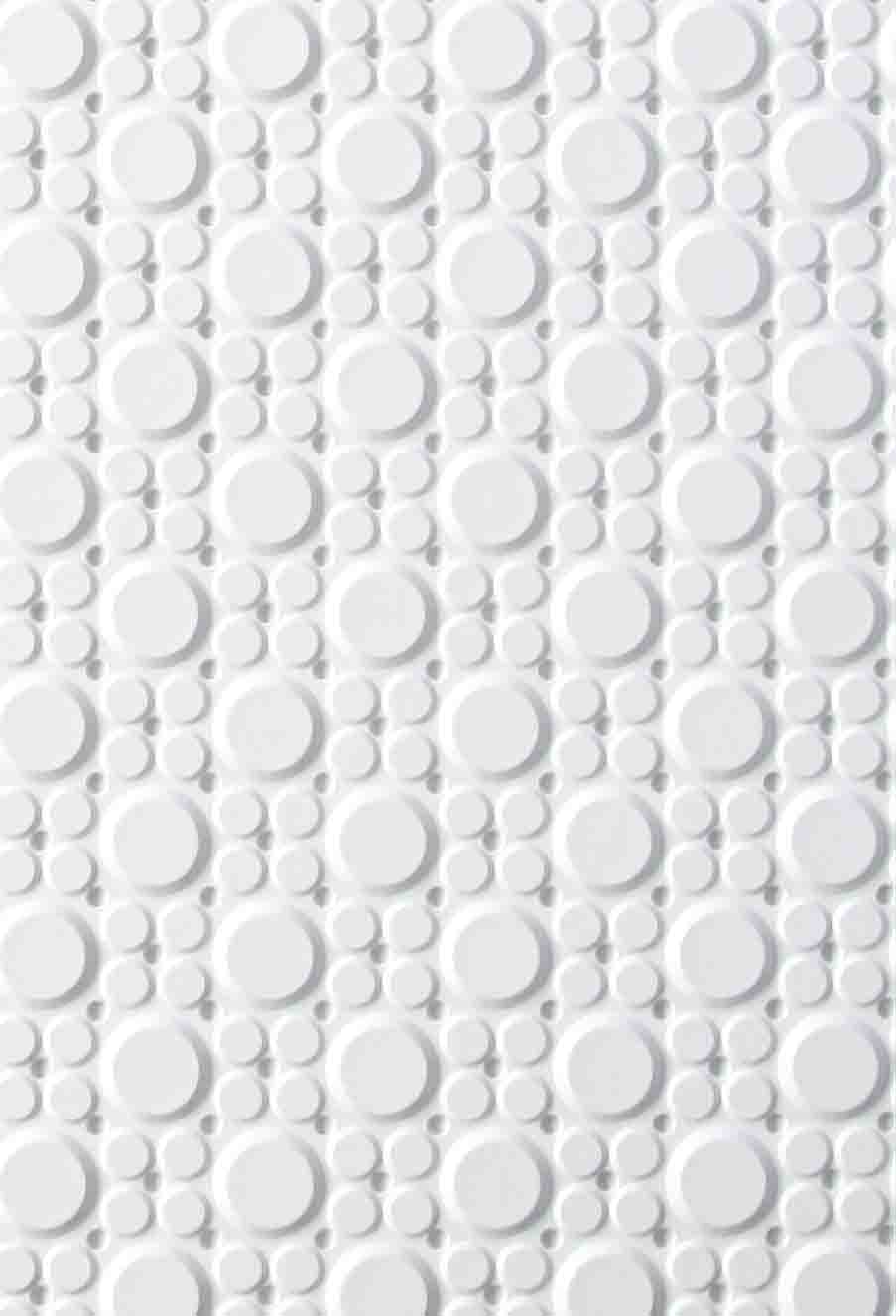

8850
Standard Moisture board
Standard Moisture Board is a moisture resistant board that will not deteriorate when installed in humid and damp areas. Moisture absorption 4.78 x 10^-2, breaking 318N and thermal conductivity 0.22W/(m.k)
Size available 600 x 600; 600 x 1200; 300 x 1200; custom size(depends on thickness and pattern of board). Thickness 12mm – 18mm. Ceiling system – HIgh tensile T Bar.

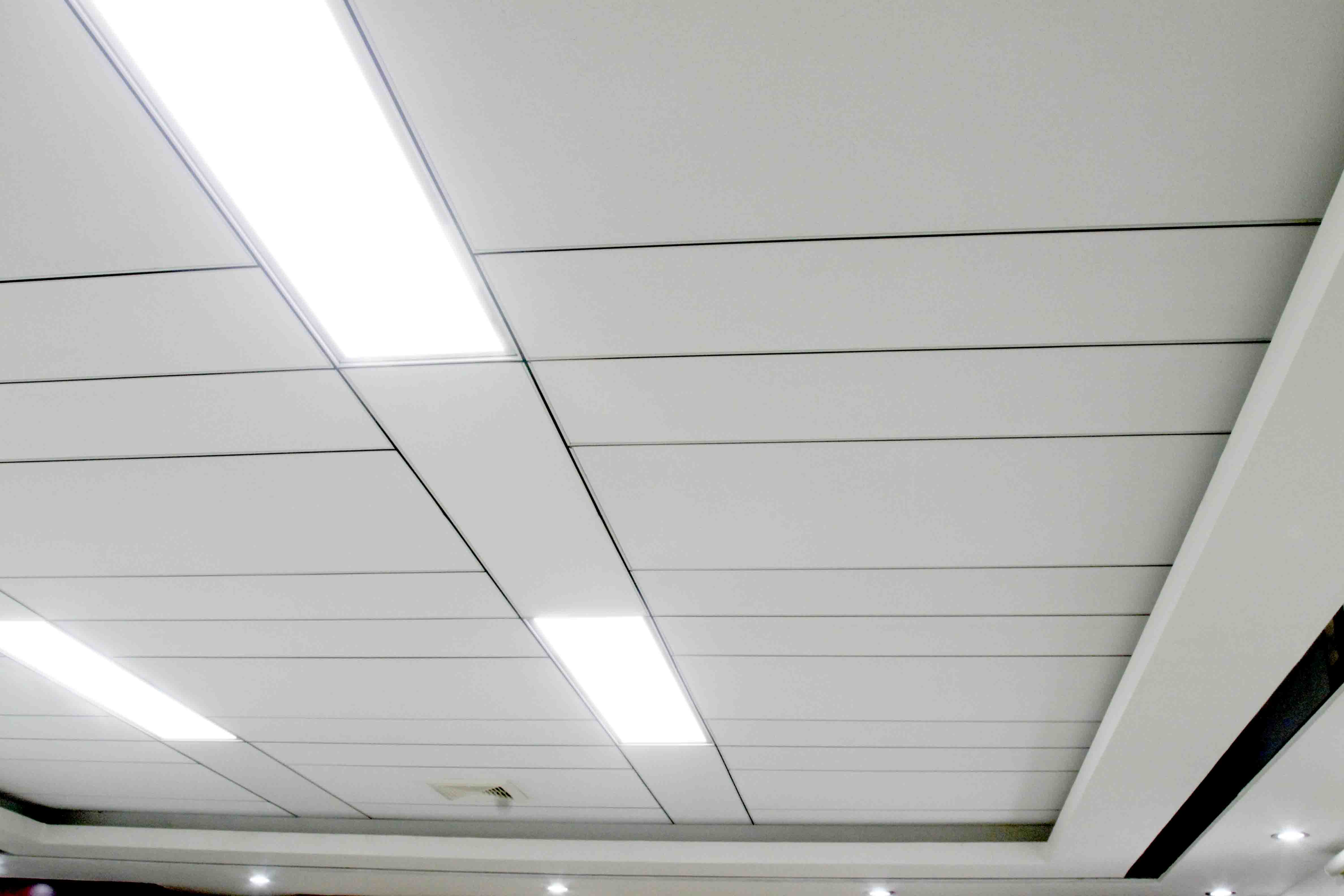

Lay on Ceiling System
T Grid 30 x 15
Main T – 30mm x 15mm x 3600mm
Cross T – 23mm x 15mm x (600 or 1200)mm
Wall angle – 20mm x 20mm x 3600mm
T Grid 32 x 24
Main T – 32mm x 24mm x 3600mm
Cross T – 24mm x 24mm x (600 or 1200)mm
Wall angle – 24mm x 24mm x 3600mm
Groove T Grid 42 x 15
Main Groove T – 42mm x 15mm x 3600mm
Cross Groove T – 24mm x 24mm x (600 or 1200)mm
Wall angle – 20mm x 20mm x 3600mm
