STEELMAX SXL CEILING SYSTEM with 6mm Diameter Threaded Rod
The SteelMax SXL Heavy Duty ceiling system is designed metal framing structure suitable for Heavy suspended concealed ceiling construction to be lined with a wide range of ceiling lining materials i.e. Thicker gypsum plasterboard, calcium silicate or fibre-reinforced cement panels, etc. When constructing according to recommended specifications, the ceiling system is designed to meet the most sought after functional features nowadays such as acoustic, thermal performances and flexible design aesthetically.

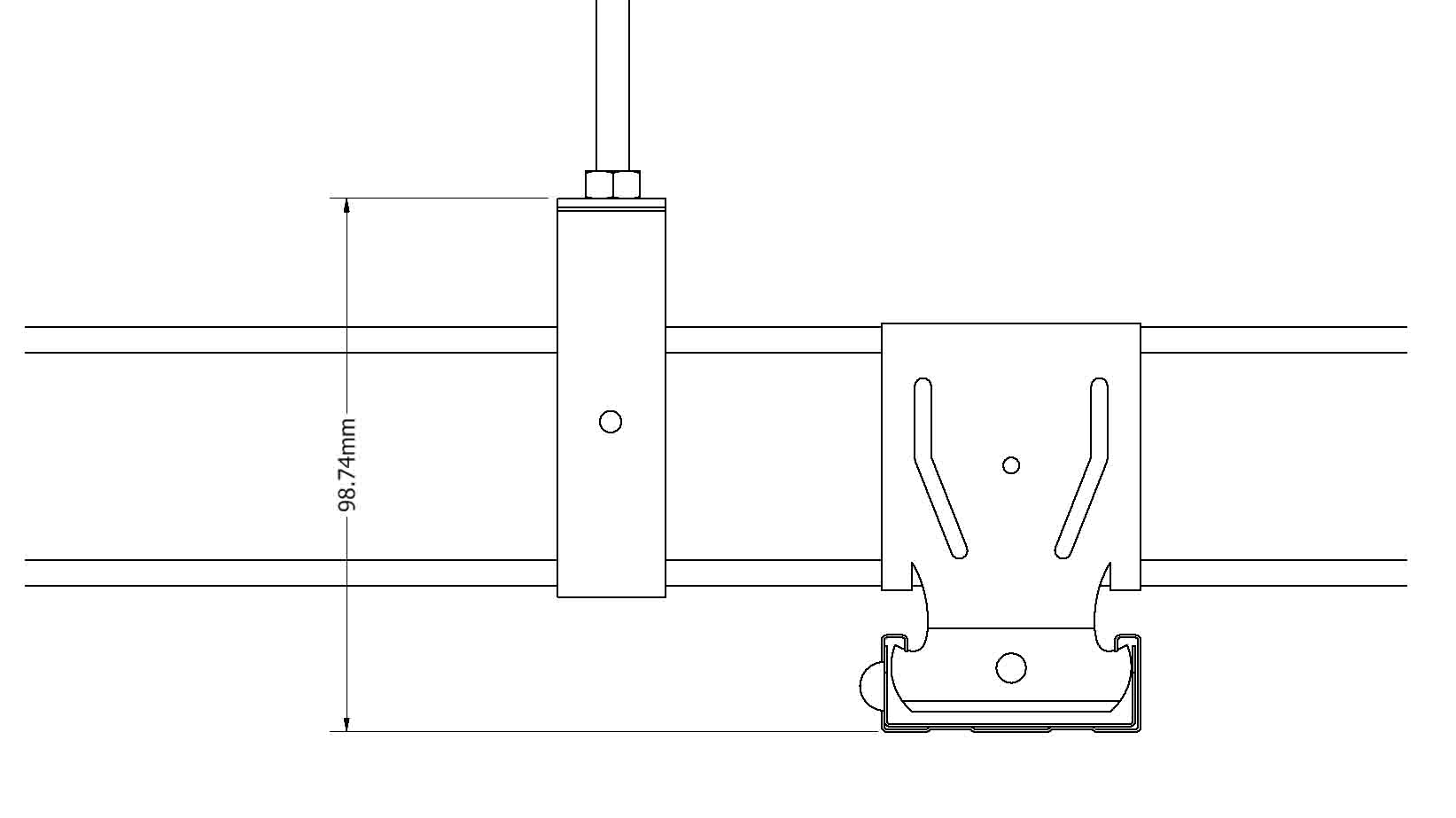

Box up two Steelmax Channels SXL3650 also can strengthen the primary framing which allows wider the span of suspension beneath M&E services, max span 1.8m.
MAIN COMPONENTS
Channel (SXL3650)
48mm x 17mm x 0.5mm
M6 nut
Hanger Clip (SHC)
72mm x 21mm x 0.6mm
Perimeter (SLP2440)
25mm x 20mm x 12mm
x 0.5mm(Thickness)x 2440mm(length)
2mm Hanger (S2H)
74mmx 24mm x 2mm
6mm diameter threaded rod(THREADED ROD 6)
6mm(Diameter) X various length
Channel splice (SLC-1)
46mmx 15mm x 0.5mm
Drop In Anchor
(Drop in anchor 6)
6mm X 25mm
ACCESSORIES
J Hook (J Hook)
65mm x 24mm x 3mm
![SXL Heavy Duty Method of statement page 3_600mm [Recovered]](https://steelmaxproducts.com.my/wp-content/uploads/elementor/thumbs/angle-channel-pabxjwbibr5i1u1y6g9cf5dr17qsqmfan26zdyl0ts.jpg "SXL Heavy Duty Method of statement page 3_600mm [Recovered]")
Angle Channel (SEA)
30mmx 10mm x 0.35mm
Corner Bead (SCB)
30mm x 0.5mm
![SXL Heavy Duty Method of statement page 3_600mm [Recovered]](https://steelmaxproducts.com.my/wp-content/uploads/elementor/thumbs/shadow-gap-pabxkhxv4njyovi0i1c3qnm2rr7hz68k5mdhq4neww.jpg "SXL Heavy Duty Method of statement page 3_600mm [Recovered]")
Shadow Gap (SSG-10)
30mmx 10mm x 10mm x 0.35mm
