STEELMAX SXL CEILING SYSTEM
STEELMAX SXL CEILING SYSTEM
The SteelMax SXL ceiling system is designed metal framing structure suitable for Heavy and Light suspended concealed ceiling construction to be lined with a wide range of ceiling lining materials i.e. Thicker gypsum plasterboard, calcium silicate or fibre-reinforced cement panels, etc. When constructing according to recommended specifications, the ceiling system is designed to meet the most sought after functional features nowadays such as acoustic, thermal performances and flexible design aesthetically.
TYPE OF CEILING SYSTEM

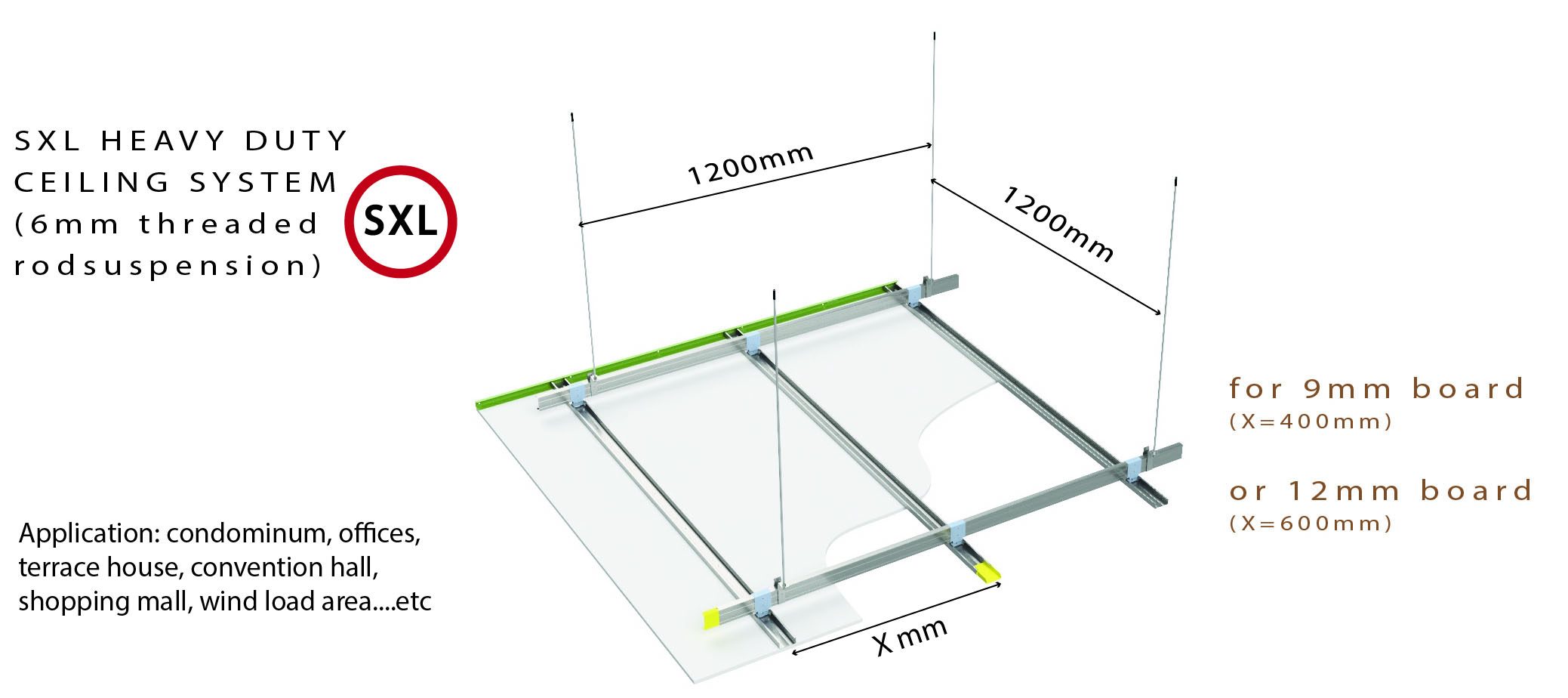

SXL ceiling system provides a variety of application configurations using 4mm diameter wire rod or 6mm diameter threaded rod as lighweight or Heavy duty system.
MAIN COMPONENTS
Channel (SXL3650)
48mm x 17mm x 0.5mm

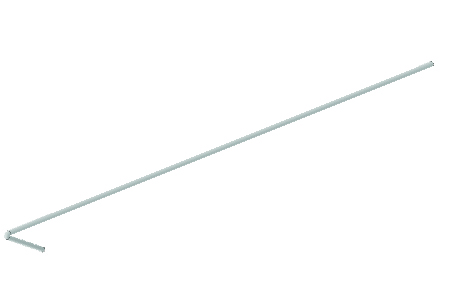

Galvanized wire rod(WL4)
4mm Diameter x various length

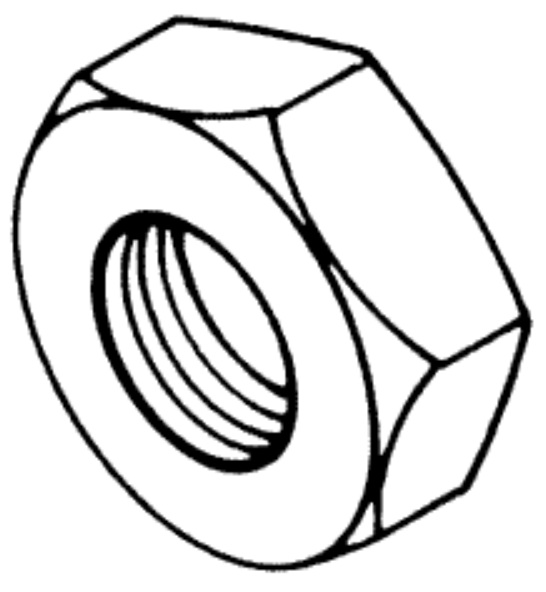

M6 nut
Hanger Clip (SHC)
72mm x 48mm x 0.6mm

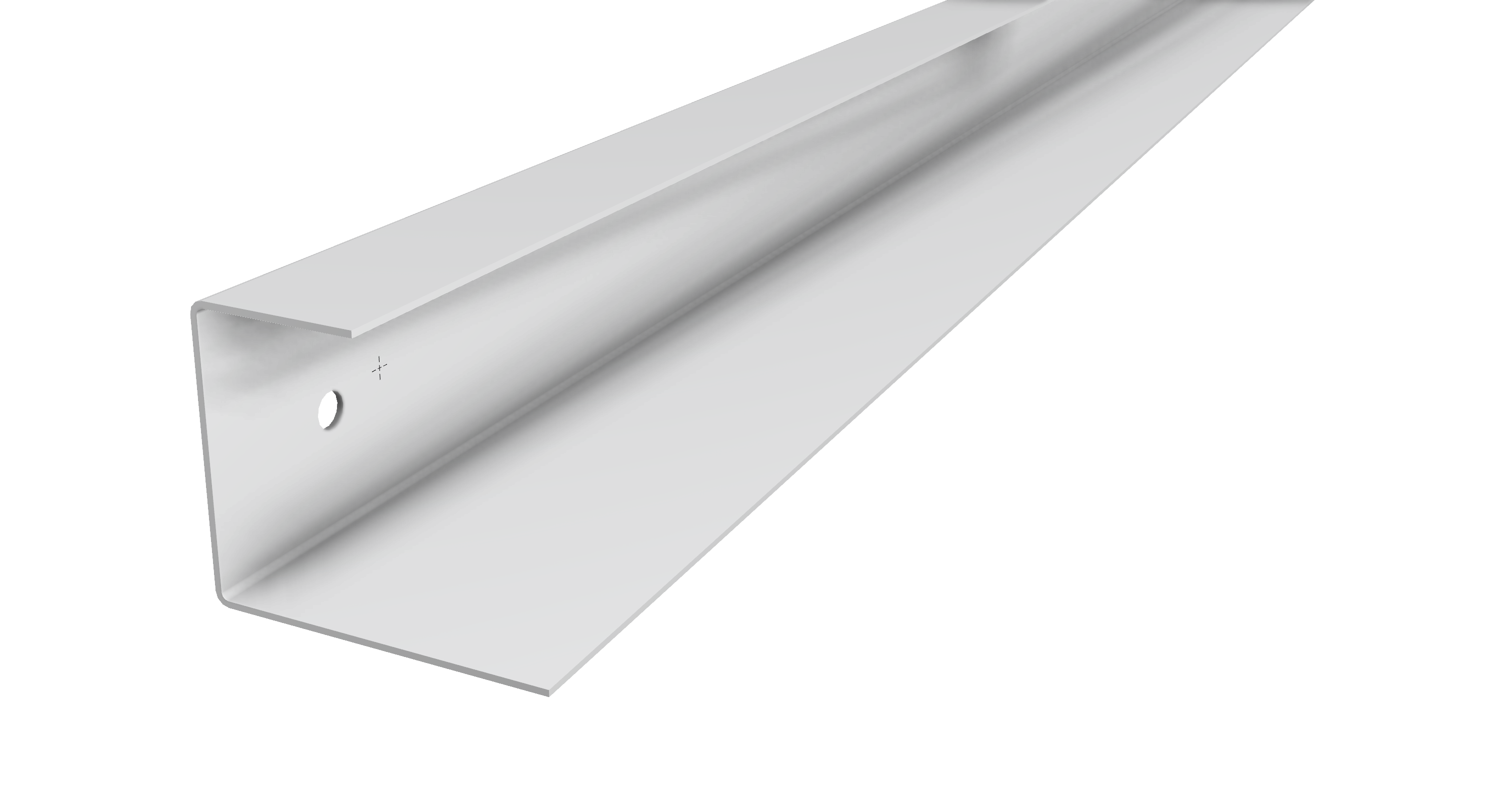

Perimeter (SLP2440)
25mm x 20mm x 12mm
x 0.5mm(Thickness)x 2440mm(length)

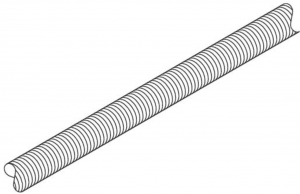

6mm diameter threaded rod(THREADED ROD 6)
6mm(Diameter) X various length

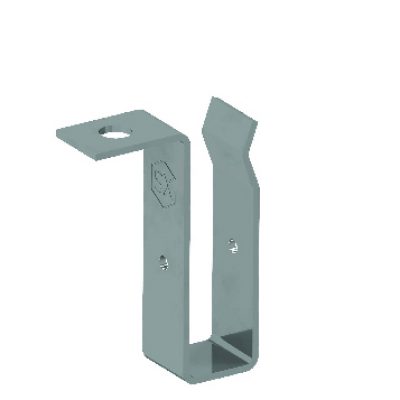

2mm Hanger (S2H)
74mmx 24mm x 2mm
Butterfly Spring Clip
(BSC)
43mm x 28mm x 0.58mm

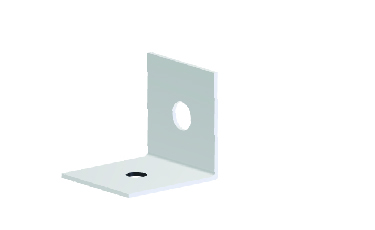

L Bracket(SL1)
25mm x 25mm x 1mm
Channel splice (SLC-1)
46mmx 15mm x 0.5mm
Drop In Anchor
(Drop in anchor 6)
6mm X 25mm

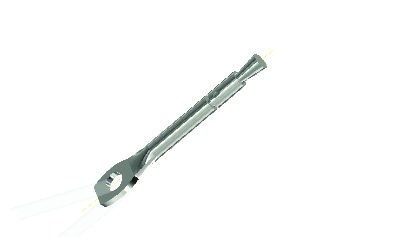

Eye anchor
60mm x 6mm(Diameter)
ACCESSORIES
J Hook (J Hook)
65mm x 24mm x 3mm
Corner Bead (SCB)
30mm x 0.5mm
![SXL Heavy Duty Method of statement page 3_600mm [Recovered]](https://steelmaxproducts.com.my/wp-content/uploads/elementor/thumbs/angle-channel-pabxjwbibr5i1u1y6g9cf5dr17qsqmfan26zdyl0ts.jpg "SXL Heavy Duty Method of statement page 3_600mm [Recovered]")

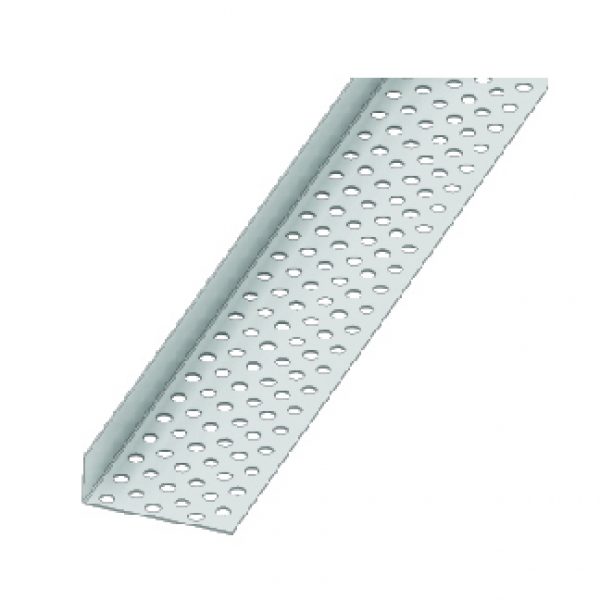

Angle Channel (SEA)
30mmx 10mm x 0.35mm
![SXL Heavy Duty Method of statement page 3_600mm [Recovered]](https://steelmaxproducts.com.my/wp-content/uploads/elementor/thumbs/shadow-gap-pabxkhxv4njyovi0i1c3qnm2rr7hz68k5mdhq4neww.jpg "SXL Heavy Duty Method of statement page 3_600mm [Recovered]")

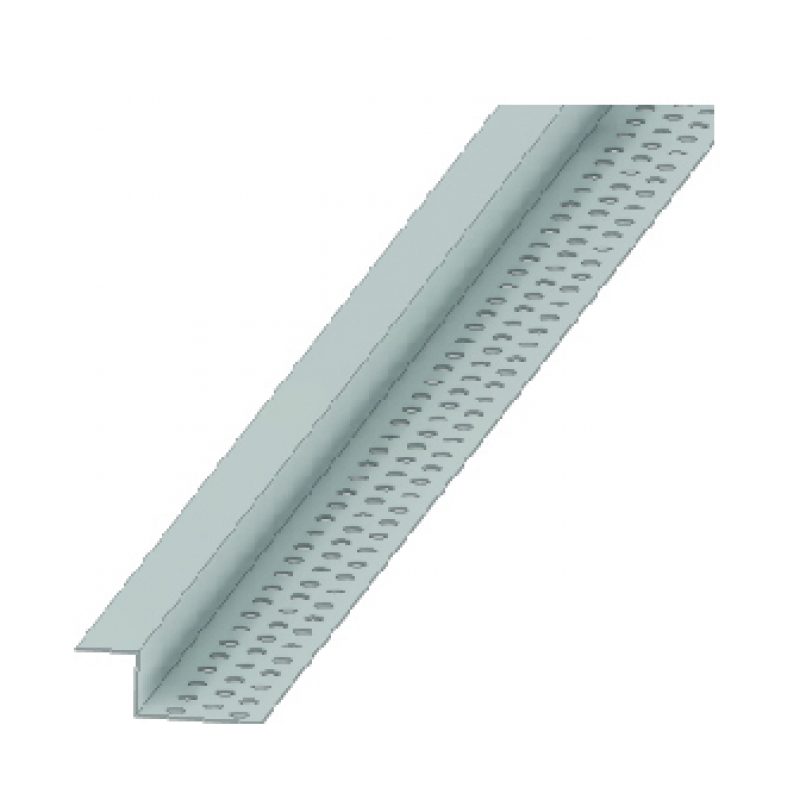

Shadow Gap (SSG-10)
30mmx 10mm x 10mm x 0.35mm
